True versatility designed for indoor or outdoor use, with a commercial grade design and adjustable height for standard or ADA compliant counters
DIMENSIONS
32.0" H x 23.38" W x 22.75" D
FEATURES
2-Drawer Outdoor Refrigerator
24" wide all-refrigerator for built-in undercounter use in indoor or outdoor kitchens
ENERGY STAR certified
Ensures unit runs efficiently with an environmentally friendly performance
Commercially approved
ETL-S listed to NSF-7 standards for commercial use
ADA compliant
32” height allows for installation within ADA-compliant spaces
Panel-ready drawer fronts
Drawers can be customized with overlay panels sized (at 23.34" x 14.17" at 3/4" thick) to match or accent existing cabinetry
Adjustable height
Unit can be raised to 34.25", with a taller kickplate included for a seamless look
Built-in capable
Front-breathing design allows the unit to be built-in under counters
Stainless steel construction
Complete 304 grade stainless steel construction provides durability while maintaining an elegant look
Indoor/Outdoor compatible
Durable, weatherproof construction designed to hold up to the elements
Professional handles
Stainless steel handles add style to any setting
Frost-free
No-frost operation for minimal user maintenance
Interior lighting
Soft LED lighting makes for easy viewing of each drawer’s contents
Digital thermostat
Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
Digital display
Large display allows for easy readability and unit control
Sliding basket
Removable basket included for additional storage convenience

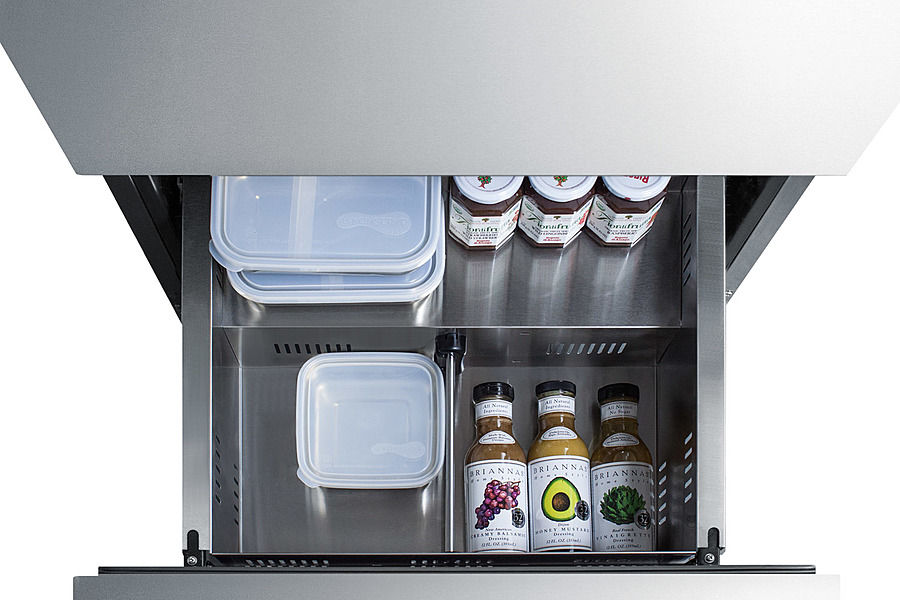

Drawer dividers
Two adjustable dividers provide flexibility when organizing the 4.8 cu.ft. interior
Removable drawers
Allows for easy cleaning and organization within the interior of the unit
Temperature alarm
Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
Door alarm
Audible alarm sounds if the drawers are left open for more than five minutes
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours
Right-angle plug
Space-saving plug allows unit to sit flush against the wall
Sealed back
Space-saving and makes for quick cleaning of the unit’s exterior
Fan-forced cooling
Provides for efficient, even cooling of the entire unit
Temperature memory
Unit will retain temperature settings after losing power
Anti-slam drawers
Soft-close glides prevent drawers from slamming shut for additional durability and safety
Anti-tip bracket
Bracket (included) helps prevent tipping for added safety
Fully finished cabinet
Allows the unit to be used freestanding
Matching freezer available
Pair with Summit's frost-free ADFD2D24 to create a matching side-by-side set
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview | |
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 4.8 cu.ft. (136 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 262.0kWh/year |
| Amps | 0.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101064949 |
Refrigerator Features | |
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.09oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Interior Drawers | Yes |
| Interior Drawers Qty | 2 |
| Temperature Range | 34 to 43ºF |
| Sound Level | 34.3 dB |
Drawer Dimensions | |
| Interior Height 1 | 9.63" (24 cm) |
| Interior Width 1 | 16.75" (43 cm) |
| Interior Depth 1 | 15.25" (39 cm) |
| Interior Height 2 | 10.75" (27 cm) |
| Interior Width 2 | 16.75" (43 cm) |
| Interior Depth 2 | 15.25" (39 cm) |
Dimensions | |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 16.75" (43 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
