Shallow 18" depth lets you make the most out of limited space with full capacity wine storage and an elegant presentation
DIMENSIONS
71.75" H x 23.5" W x 18.0" D
FEATURES

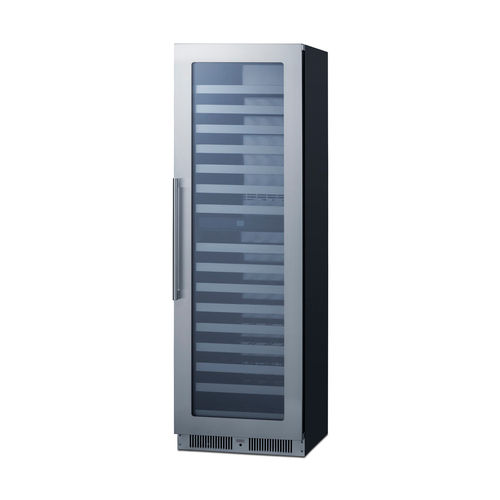

24" Wide Premium Wine Cellar
Built-in 98-bottle wine cooler for dual zone storage in shallow cutouts
Shallow depth
18" depth offers slim-fitting elegance, perfect for narrow home bars and kitchen corners, converted spaces, or other spots where you can't fit a full-depth unit
Built-in design
Front-breathing cooling system to allow seamless integration inside cabinetry (recommended opening: 72" H x 24" W x 20" D)
Dual zone storage
Upper zone operates between 41 and 50ºF for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64ºF to best preserve red wine
Unbranded exterior
Allows for seamless integration with other appliances
Seamless 304 grade stainless steel door trim
Single-piece stainless steel door trim offers a more deluxe look
Gently tinted glass door
Attractive glass door provides a complete but protected display of stored contents
Fully articulating style hinge
European style hinge design ensures a flush fit and allows for a smoother opening
Professional handle
Stainless steel look for added elegance
Automatic defrost
No-frost operation for minimum user maintenance
Deluxe wine shelving
Removable wire shelving in black with stainless steel from trim for an elegant, modern look
Full-extension shelving
16 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Vibration-free
Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Tri-colored LED lighting
Rotate your presentation style with a choice of blue, white, or amber LED lighting
Digital thermostat
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Digital temperature display
Temperature readout can be shown in Celsius or Fahrenheit
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 96 hours
Stainless steel interior rear wall
Stainless steel rear wall protects the unit's integrity and is easier to clean
Factory-installed lock
Keyed lock located in the kickplate for added security as needed
Sealed back
Space-saving design with no exposed coils that offers easier cleanability
Stainless steel kickplate
Complete luxury down to the toe kick
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Quiet operation
Inverter compressor ensures a whisper quiet operation, measured in our testing facilities at just 32.2 dB
Anti-tip bracket
Bracket included and must be installed to prevent tipping
Reversible door
User-reversible door swing for added flexibility to best accommodate your setting
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview | |
|---|---|
| Height of Cabinet | 71.75" (182 cm) |
| Width | 23.5" (60 cm) |
| Depth | 18.0" (46 cm) |
| Depth with Handle | 19.75" (50 cm) |
| Depth with door at 90° | 41.25" (105 cm) |
| Bottles | 98 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 5.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 276.0 lbs. (125 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101150536 |
Wine Cellar | |
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wire |
| Shelf Qty | 16 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.41 oz. |
| Interior Height 1 | 27.5" (70 cm) |
| Interior Width 1 | 19.5" (50 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF |
| Interior Height 2 | 34.0" (86 cm) |
| Interior Width 2 | 19.5" (50 cm) |
| Interior Depth 2 | 12.25" (31 cm) |
| Sabbath Mode | Yes |
| Sound Level | 32.2 dB |
